稀有材料金屬絲網

時間：2024-12-09 11:26:18

瀏覽量：1494

1.鈦金屬絲網：材料：TA1、TA2、GR2、GR3、R50250、鈦合金等。黑色純鈦絲Ti≥99.6%（適用于船舶，水過濾等行業）光亮純鈦絲（用于生產電極...

聯系我們

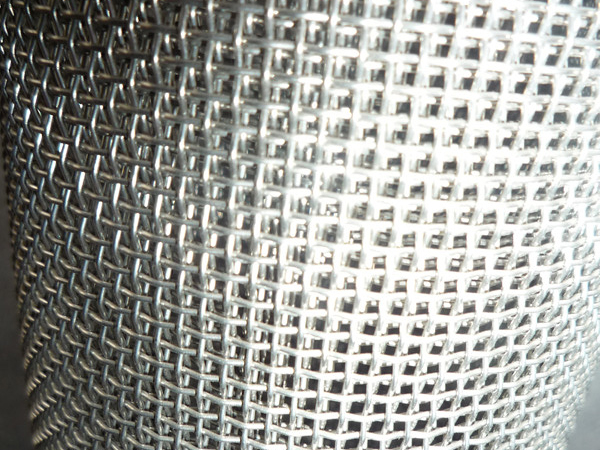

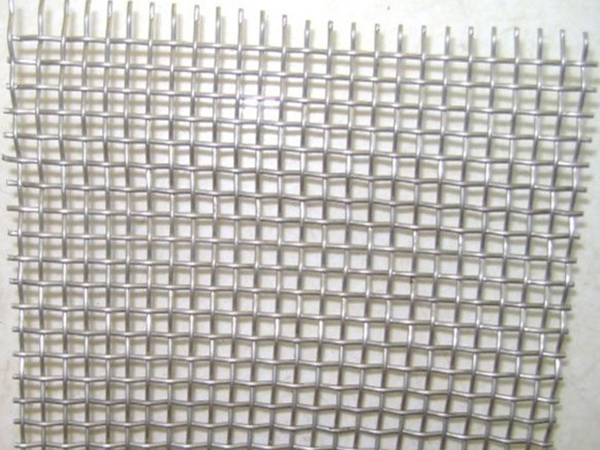

1.鈦金屬絲網：

材料：TA1、TA2、GR2、GR3、R50250、鈦合金等。黑色純鈦絲Ti≥99.6%（適用于船舶，

水過濾等行業）光亮純鈦絲（用于生產電極、電池集電網、精細

化學過濾）醫用鈦絲（適用于制造醫療器械）

孔形狀：方形

網眼數：0.2-100

寬度：5mm-2000mm

編織：平紋、斜紋。

Mesh	Wire diameter		Aperture/Opening		%Open Area
Mesh	Inch	Mm	Inch	Mm	%Open Area
1x1	.080	2.03	.920	23.37	84.6
2X2	.063	1.60	.437	11.10	76.4
3X3	.054	1.37	.279	7.09	70.1
4X4	.063	1.60	.187	4.75	56.0
4X4	.047	1.19	.203	5.16	65.9
5X5	.041	1.04	.159	4.04	63.2
6X6	.035	.89	.132	3.35	62.7
8X8	.028	.71	.097	2.46	60.2
10X10	.025	.64	.075	1.91	56.3
10X10	.020	.51	.080	2.03	64.0
12X12	.023	.584	.060	1.52	51.8
12X12	.020	.508	.063	1.60	57.2
14X14	.023	.584	.048	1.22	45.2
14X14	.020	.508	.051	1.30	51.0
16X16	.018	.457	.0445	1.13	50.7
18X18	.017	.432	.0386	.98	48.3
20X20	.020	.508	.0300	.76	36.0
20X20	.016	.406	.0340	.86	46.2
24X24	.014	.356	.0277	.70	44.2
30X30	.013	.330	.0203	.52	37.1
30X30	.012	.305	.0213	.54	40.8
30X30	.012	.305	.0213	.54	40.8
30X30	.009	.229	.0243	.62	53.1
35X35	.011	.279	.0176	.45	37.9
40X40	.010	.254	.0150	.38	36.0
50X50	.009	.229	.0110	.28	30.3
50X50	.008	.203	.0120	.31	36.0
60X60	.0075	.191	.0092	.23	30.5
60X60	.007	.178	.0097	.25	33.9
70X70	.0065	.165	.0078	.20	29.8
80X80	.0065	.165	.0060	.15	23.0
80X80	.0055	.140	.0070	.18	31.4
90X90	.005	.127	.0061	.16	30.1
100X100	.0045	.114	.0055	.14	30.3
100X100	.004	.102	.0060	.15	36.0
100X100	.0035	.089	.0065	.17	42.3
100X100	.0035	.089	.0065	.17	42.3

特征

1鈦金屬絲網密度低，比強度高。

2鈦金屬絲網具有出色的耐腐蝕性。在腐蝕環境中，高純鈦網表面會形成一層氧化膜，保護金屬絲網免受腐蝕，該層致密且惰性，具有很強的耐腐蝕性。

3鈦絲網在以下環境中具有優異的耐腐蝕性能：海水、濕氯、亞氯酸鹽和次氯酸鹽溶液、硝酸、鉻酸、金屬氯化物和有機鹽等。

應用

鈦金屬絲網可用于造船、軍工制造、化學過濾器、機械過濾器、，

海水淡化過濾器、高溫真空設備、醫藥過濾行業等。

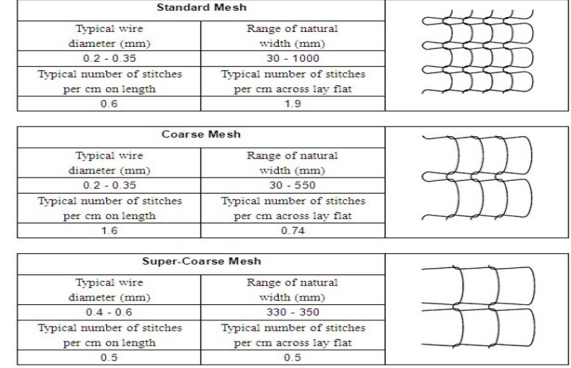

2.鎳絲網：

鎳網可分為鎳編織網、鎳膨脹網、鎳穿孔網、鎳針織網。穿孔網、鎳針織金屬絲網。

1.導言

·材質：鎳絲

·線徑：0.17mm-0.55mm

·寬度：40mm、80mm、100mm、150mm、200mm、300mm、400mm、500mm、600mm、800mm、1000mm、1200mm、1400mm

·孔：2x3,4x5,6x12

·表面：平坦起伏

2.應用

·針織金屬絲網墊片

·液體和氣體過濾網

·濾芯

·汽車密封件、減震器、消聲器和排氣凈化部件

·電子、電器產品抗電磁干擾屏蔽裝置

3.規格

Type	Specification
Standard type	40-100 60-150 105-300 140-400 160-400 200-570
High-efficiency type	60-100 80-100 80-150 90-150 150-300 200-400 300-600
High-penetration type	20-100 30-150 70-400 100-600 170-560
Damping type	33-30 38-40 20-40 26-40 30-40 30-50 48-50 30-60 30-80 50-120
Packing	With carton
Min order	300meter

3. Monel Mesh:

Material	Common material: Monel 400, Monel 401, Monel 404, Monel R405, Monel K-500 Special material:brass/phosohor bronze / monel /pure nickel /nichrome ect.
Wire diameter	0.5-2.03mm
Mesh counts	2-200mesh
Surfuce	Smooth
Weave style	Plain weave Twill weave Dutch weave
Shape	square
Technique	weave
Feature	Monel wire mesh has the features such as: Superior corrosion resistance and acid-alkali resistance; High temperature resistance; Resistance to stress corrosion; High tensile strength; Excellent hardness.
Application	Monel wire mesh can be widely used in chemical and petrochemical industry and marine development etc. Monel wire mesh also can be used to manufacture all kinds of heat exchange equipment, pressure vessel, boiler feed water heater equipment, oil and chemical pipelines, containers, towers, tank, valves etc
Popular size	2mesh-200mesh

4.銅網：

材質：銅線、黃銅絲、磷青銅絲

特點：無磁性，防火花，耐大氣腐蝕，耐鹽空氣和鹽水

用途：分離和篩選各種顆粒、顆粒、瓷土和玻璃、瓷器印刷、過濾液等。

<td width="79" valign="center

Mesh/inch	Wire Diameter (mm)	Aperture (mm)	Mesh/inch	Wire diameter (mm)	Aperture (mm)
2mesh	1.80	10.90	40mesh	0.21	0.425
3mesh	1.60	6.866	50mesh	0.19	0.318
4mesh	1.20	5.15	60mesh	0.15	0.273
5mesh	0.91	4.17	70mesh	0.14	0.223
6mesh	0.80	3.433	80mesh	0.12

Tag：稀有材料金屬絲網、
